Lateral Bracing

Features:

• Temporary support components, easy to disassemble and assemble



• Withstand combined compressive and bending loads



• High-strength steel tubes, treated with anti-corrosion coating


• Simple to maintain and low in cost

Product details

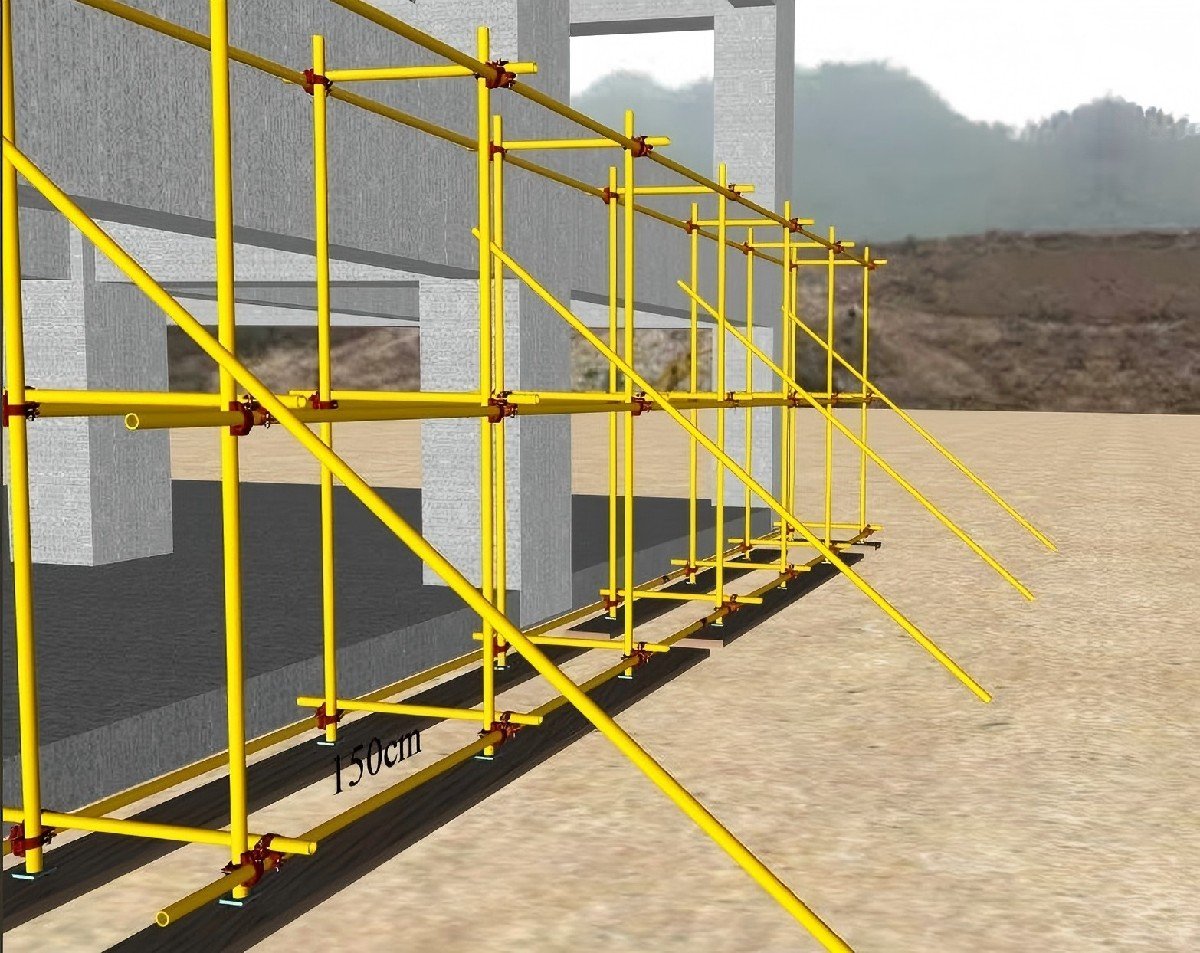

The lateral bracing is a supporting component used in the scaffolding system for temporarily stabilizing the structure. It is mainly used to prevent the scaffolding from overturning when it is impossible to set up wall connecting brace in time during the process of erection or dismantling. One end of lateral bracing is connected to the horizontal ledger or vertical standard, the other end is mounted on the ground in an inclined angle, thus forming a stable triangular structure, it temporarily bears the horizontal thrust and vertical load of the overall frame, preventing the scaffold from overturning.


Basic Structure

●Main body: Made of Φ48.3×3.6mm Q235B steel tube, with yield strength ≥ 235MPa and tensile strength ≥ 375MPa. Treated with hot-dip galvanizing or painting for rust prevention. The length range is 4-6 meters, both ends are welded with connection fasteners.

●Bottom fixation: The bottom is mounted on a wooden pad (thickness ≥ 50mm) or a hardened slab, and  fixed with a bottom rod (distance from ground ≤ 200mm) to prevent sliding.

●Top connection: The top is connected to scaffolding horizontal ledgers or vertical standards using rotating couplers, which are made malleable cast iron (KTH330-08), with anti-slip bearing capacity of ≥ 8kN each and the rotation gap of the coupler is less than 1mm to prevent loosening of the connection.


Installation Criteria

●Once scaffolding height less than 6 meters and no connecting braces to wall, shoring prop must be set at intervals of ≤ 6 spans.

●Before removing the connecting braces, temporary shoring prop should be set up as a replacement to prevent the scaffolding from toppling over.

●It is strictly prohibited to be substitute of connecting brace, which must be reinstalled within 24 hours in case of miss.
