Cuplock Diagonal Brace
• Rigid connection of cuplock combines with strong anti-turnover capability.
• Modular assembly with high efficient and convenient disassembly.
• Self-locking node design ensures strong anti-loosening capability.
• Standardization of components lead to lower costs for repeatable usage.
Product details
Diagonal braces are the inclined connecting components set between the vertical standards and horizontal ledgers of the scaffolding, which are mainly made of Φ48.3*3.6mm steel tubes and fixed to the vertical standards and horizontal ledgers through cuplock nodes on its both ends, forming a triangular support structure, ensuring a firm connection. Through with diagonal support, it can resist horizontal loads (such as wind loads and construction loads), preventing the scaffolding from tilting or collapsing.

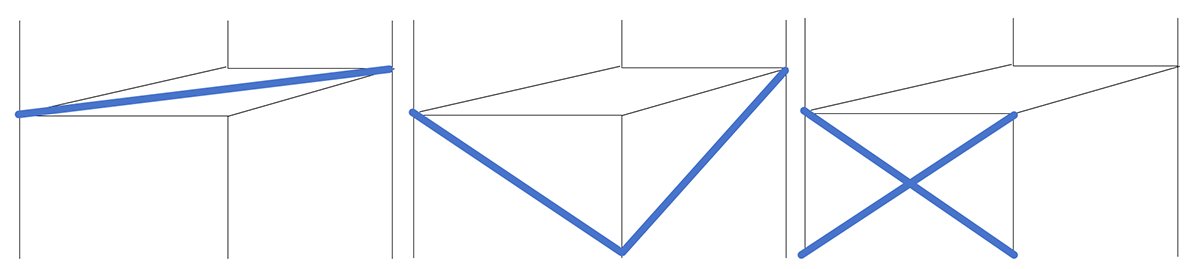

2. Erection Direction
● Longitudinal layout: Set along the scaffolding height direction, connecting the longitudinal vertical standard, and resisting the longitudinal horizontal force.
● Transverse layout: Set along the scaffolding width direction, connecting the transverse vertical standard and enhancing the lateral stability.
● Cross layout: Set in X cross pattern, forming a grid-shaped support, which can cover multiple nodes of horizontal ledgers and vertical standards.
Material | Q235 carbon steel, apply to common scaffolding. |
Q355 carbon steel, apply to heavy-load or high-rise scaffolding. | |
Tube diameter | Φ48.3mm×3.6mm，hot-dip galvanized treatment. |
Length | The length should match the spacing of the standards and the step distance of the ledges. Common specifications include 1.2m, 1.8m, 2.4m, etc. |
Installation distance | Ordinary construction scaffolding: The longitudinal and lateral spacing is ≤ 4 spans (approx 6 meters). |
High-rise or heavy-duty scaffolding: The diagonal braces should be set in high density. |
