Kwikstage Diagonal Brace
• Modular design facilitates fast installation in high efficiency.
• High strength steel, multiple adaptation leads to distributed force bearing and stable structure.
• Compatible with diverse scaffolding suitable for complex environments, and high versatility
• Anti-drop design, corrosion-resistant treatment, high safety, and easy maintenance.
• Light weight design for transportation
Product details
The diagonal braces are important components for enhancing the stability of the scaffolding, which are usually made of Ø48mm steel tubes, and equipped with rotating C-shaped parts on both ends with wedge-shaped fastener. They can be fixed in the star-shaped cavities of the vertical standard and connected at an inclined angle between the vertical standards and horizontal ledgers, providing additional strength and stability to against wind loads and horizontal forces. The installation and quantity are determined according to factors involving in the height, span, and load conditions of the scaffold.

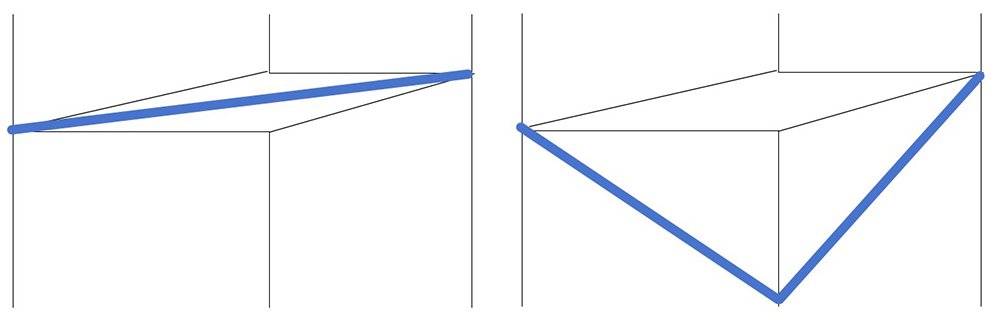

● Transverse layout: Set along the scaffolding horizontal direction, connecting vertical standard or horizontal ledger, enhancing the stability horizontally.
● Longitudinal layout: Set along the scaffolding height direction, connecting vertical standard and horizontal ledger, forming a triangle structure within vertical lateral space.
Material | Q235 carbon steel has excellent toughness and welding properties, and can meet the usage requirements of ordinary scaffolding. |
Q355 carbon steel has higher yield strength, and is suitable for occasions where the stability and load-bearing capacity of scaffolding are highly demanded. | |
Tube diameter | A diameter of 48.3mm can ensure the structural strength and stability of the standard, preventing it from deforming easily when subjected to loads. |
Wall thickness | Common sizes include 2.3mm, 2.5mm, 2.75mm, 3.0mm, etc. Different wall thicknesses are suitable for different load requirements and usage scenarios. The greater the wall thickness, the stronger the bearing capacity and deformation resistance of the diagonal braces. |
Length | Diverse length range of 1.7m, 2.1m, 2.7m, 3.2m, 3.6m, or can be customized according to specific requirements. |
Surface treatment | Hot-dip galvanizing: It has excellent anti-corrosion properties, can effectively prevent steel from rusting, extend life span, and is suitable for various harsh outdoor environments. |
Painting: A wide range of color available with anti-corrosion and aesthetically pleasing property, commonly used for construction projects with specific requirements for appearance or in urban environments. |
