Frame Scaffolding

Features:

• High-efficiency modular installation.Object to complex assembly, standardized components contribute to rank first of construction efficiency among all scaffolds.



• Strong structural stability.Rigid connection of rectangular frame suit to medium-load scenarios attribute to strong anti-overturning capability.


• Reliable safety performance.In addition to unified strength, the standardized components are equipped with planks, guardrails to reduce operation risk.



• Flexibility and applicability .By combining with different framework units, the layout can be quickly adjusted to meet the construction requirements of various heights, spans and shapes.





Product details

Frame scaffolding is composed of standardized frames as the elementary units by utilizing horizontal ledgers, and diagonal braces to form the basic load-bearing structure, then expanding into an overall structure by means of connecting components, supplemented with planks and guard rails to embody working functions, and finally realize stability of the entire system attribute to base jacks and bracing tensioners. It features the prefabricated components and convenient connections, that can be quickly erected to form an operation platform with a certain height and load-bearing capacity, becoming a typical representative of the modern building temporary support system.

The basic components of the frame scaffolding structure include main components such as door frame, cross bracing, adjustable base jack as well as auxiliary components consist of joint pin, plank, top head jack, lateral bracing and ladder.

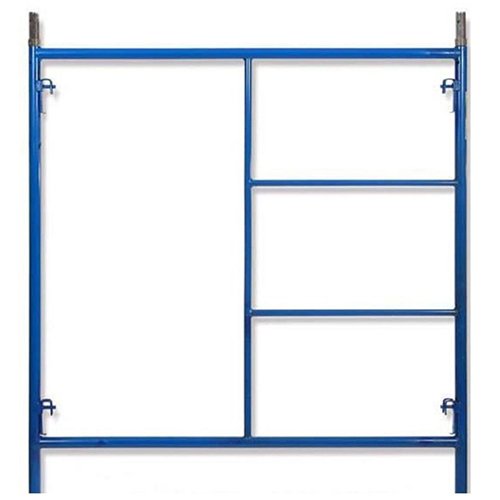

Door frame

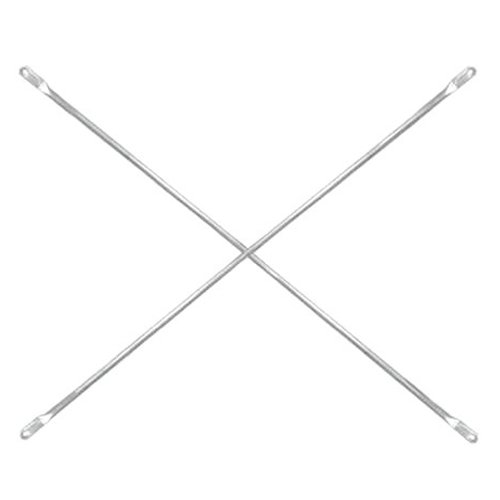

Cross brace

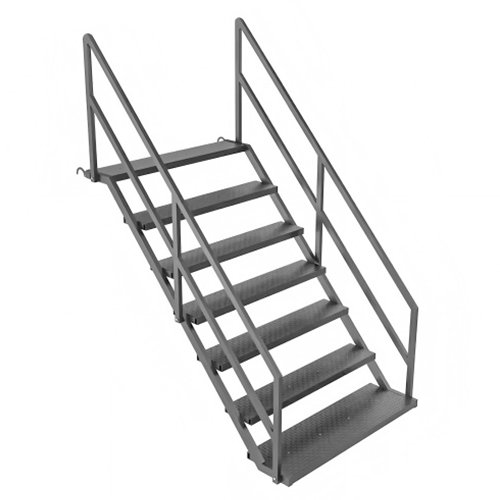

Ladder

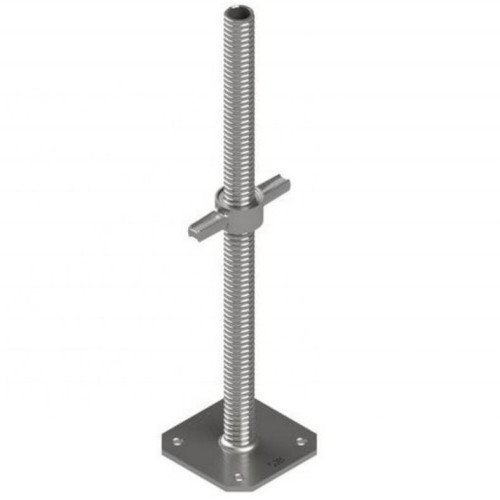

Adjustable Base Jack

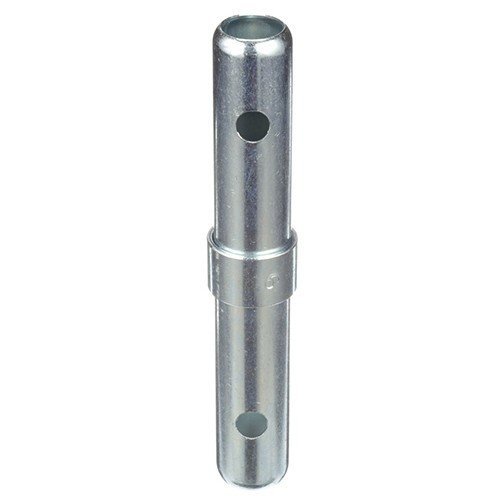

Joint Pin

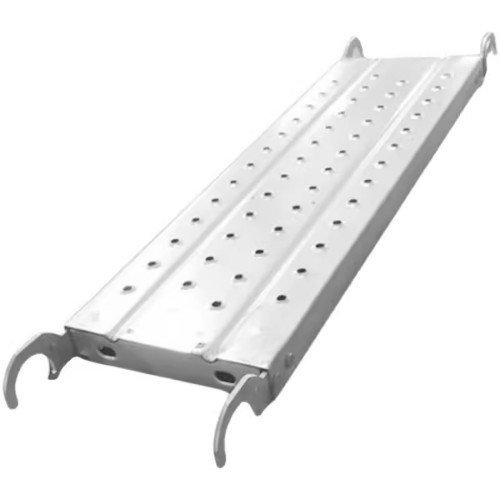

Plank

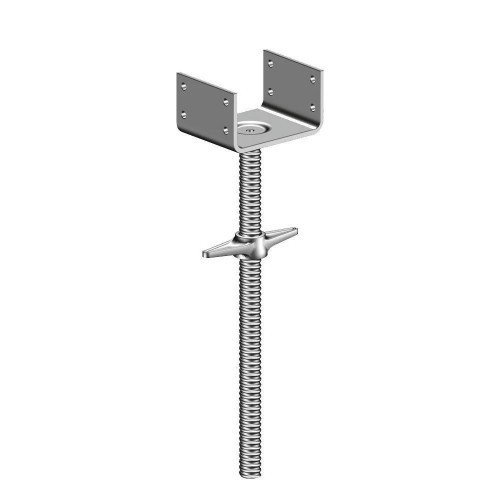

Top Head

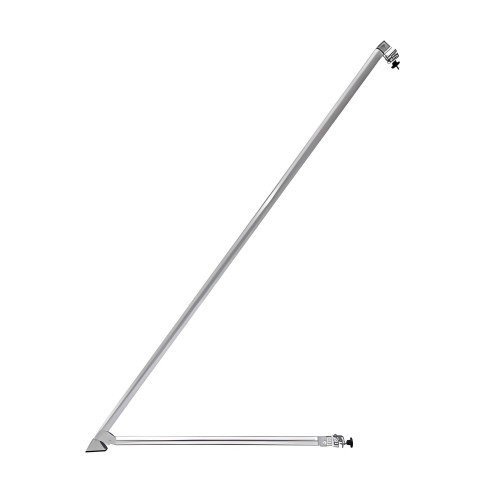

Lateral Bracing


Application Fields

● Construction: Can be used for form work support, such as bridge and tunnel engineering, as well as   scaffolding for construction and decoration for interior and exterior wall.

● Temporary facilities: Used for building dormitories, warehouses, and sheds at construction sites.

● Special operations: As a work platform for mechanical and electrical installations, shipbuilding, and other high-altitude operations.

● Event scenarios: Used for setting up temporary viewing platforms, stands and other temporary structures.
